AWS S3

Setting up Amazon Web Services (AWS) S3 remote storage for NorrCompetition.

Flysystem - AWS S3 for NorrCompetition (plg_flysystem_ncaws) enables direct media synchronization between NorrCompetition and Amazon Web Services Simple Storage Service (S3).

---

Part 1: Amazon Web Services Setup

1.1. Create a Dedicated IAM User

For optimal security, create a dedicated IAM user with programmatic access rather than using root AWS credentials:

1. Sign in to the AWS Management Console and navigate to IAM (Identity and Access Management).

2. Go to Users > Create User.

3. Set a user name (e.g. norrcompetition-s3-user).

4. In Attach policies directly, attach the policy AmazonS3FullAccess or create a custom least-privilege policy restricted to your target bucket.

5. In the user details, navigate to the Security credentials tab, click Create access key, and select Application running outside AWS.

6. Copy both the Access Key ID and Secret Access Key (save them securely).

1.2. Create an S3 Bucket

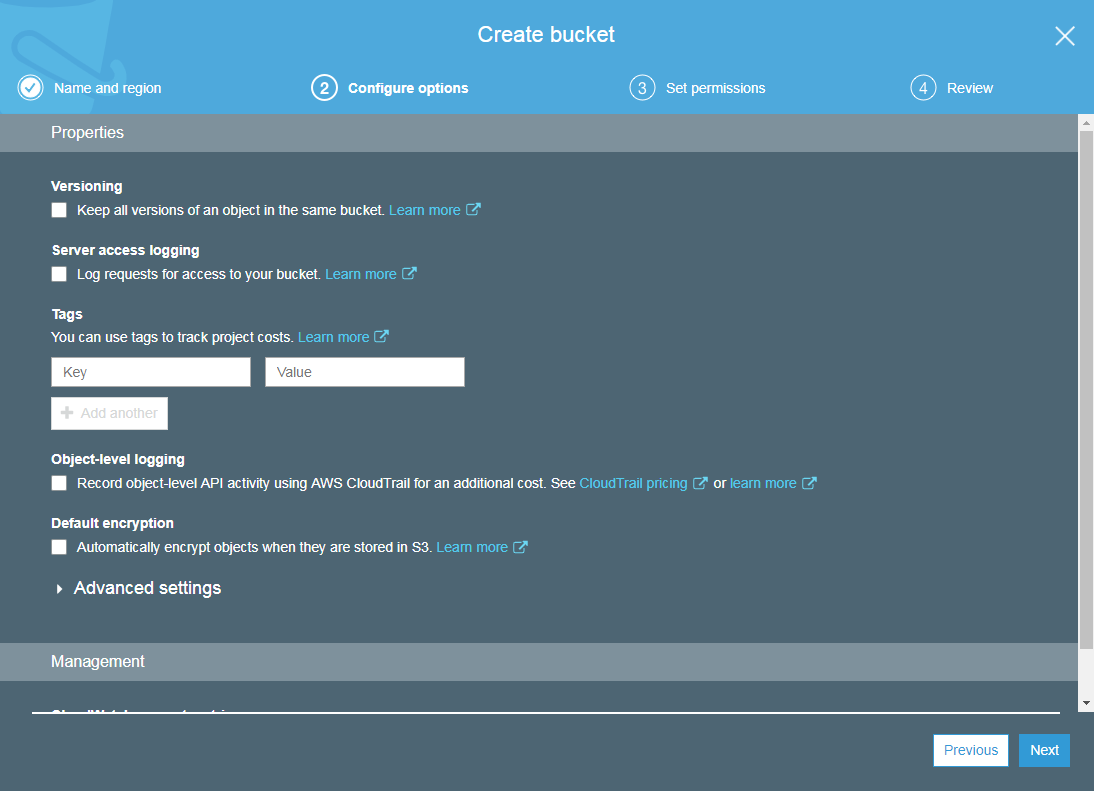

1. Open the Amazon S3 Console and click Create bucket.

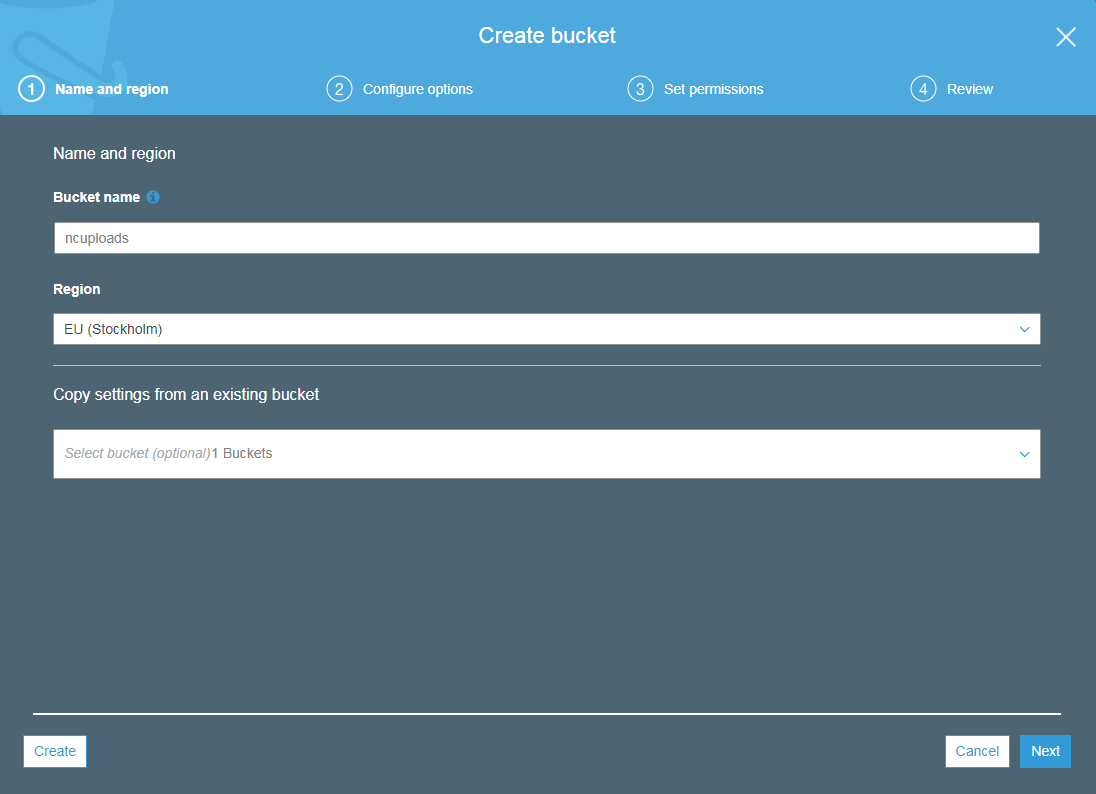

2. Bucket Name: Enter a globally unique bucket name (e.g. my-nc-uploads).

3. AWS Region: Select the region closest to your server or audience (e.g. eu-central-1 Frankfurt or us-east-1 N. Virginia).

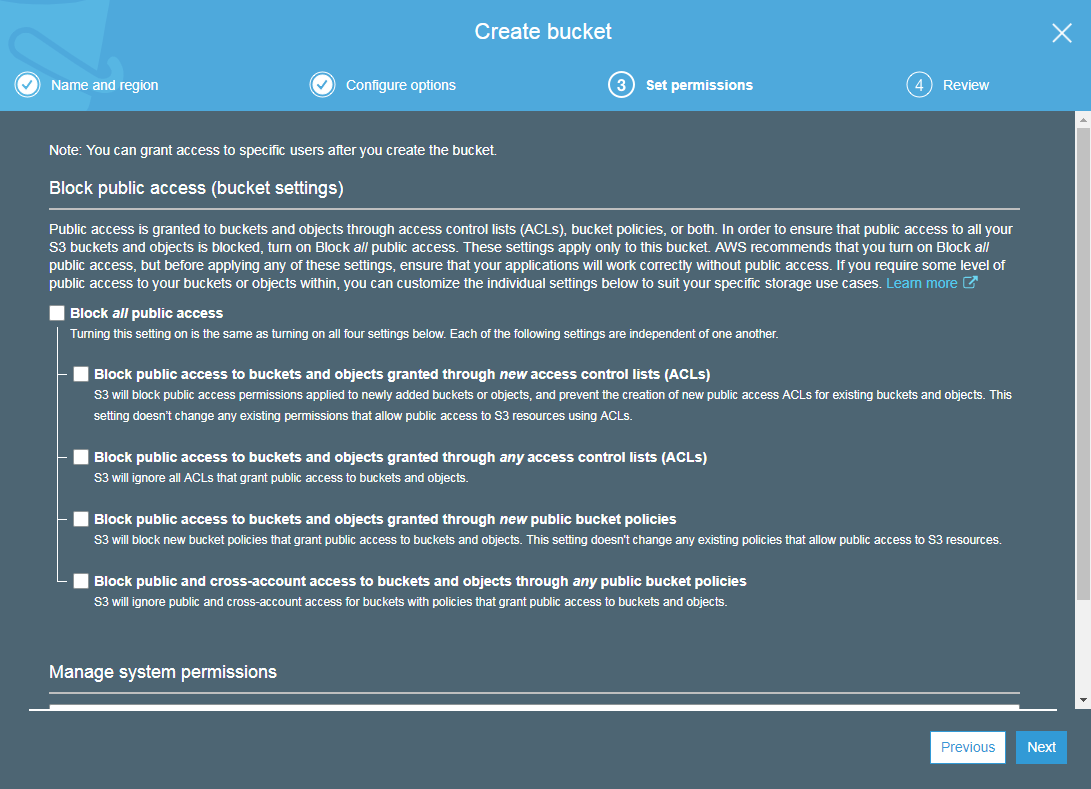

4. Block Public Access settings: If images need to be served directly from S3 or CloudFront publicly, adjust public access settings according to your asset delivery model.

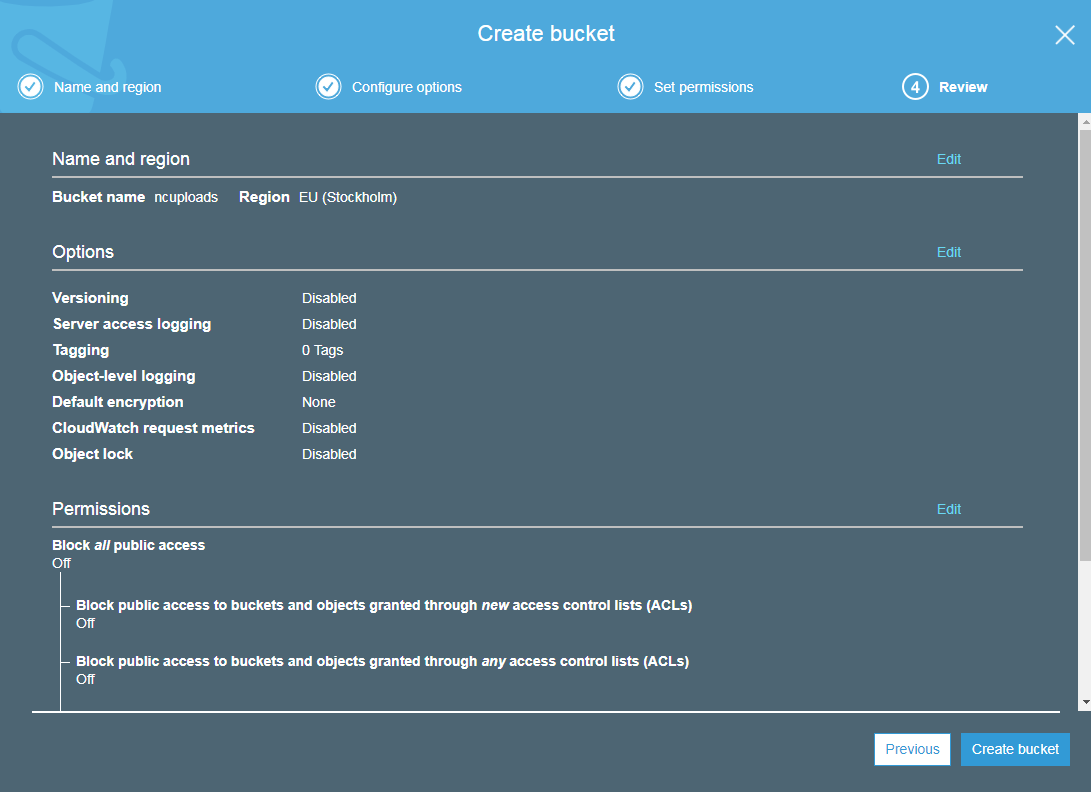

5. Click Create bucket.

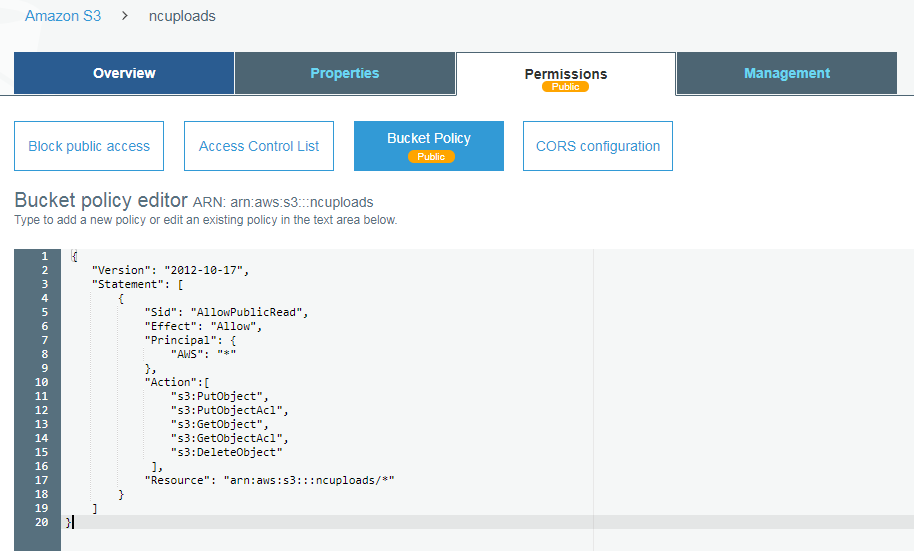

1.3. Configure S3 Bucket Policy (Public Read)

If you serve images directly from S3 without an authenticated reverse proxy or signed URLs, grant public read permissions by navigating to Bucket > Permissions > Bucket Policy and entering:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowPublicRead",
      "Effect": "Allow",
      "Principal": "*",
      "Action": [
        "s3:GetObject"
      ],
      "Resource": "arn:aws:s3:::YOUR-BUCKET-NAME/*"
    }
  ]
}

Replace YOUR-BUCKET-NAME with your actual S3 bucket name.

---

Part 2: Plugin Configuration

1. Install the plg_flysystem_ncaws package via System > Install > Extensions.

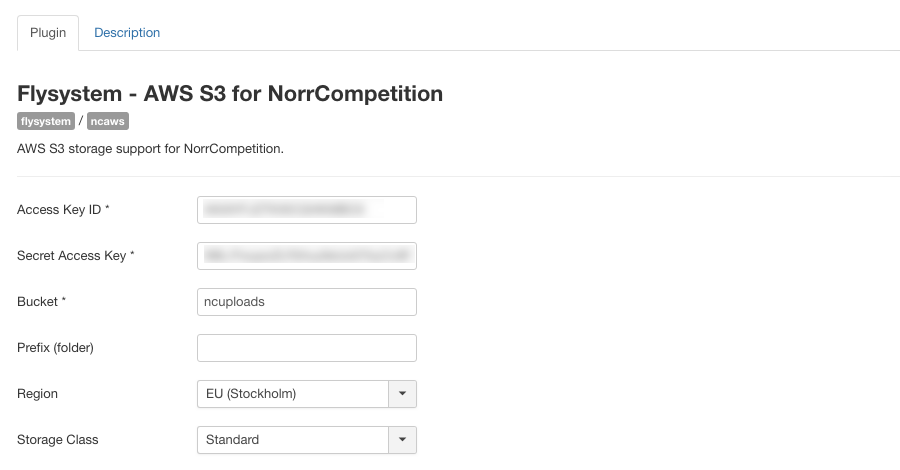

2. Navigate to System > Plugins and open Flysystem - AWS S3 for NorrCompetition.

3. Configure the plugin parameters as described below:

Parameter	Type	Required	Description
Access Key ID	Text	Yes	The AWS Access Key ID for your IAM user.
Secret Access Key	Text / Password	Yes	The secret access key associated with your IAM user.
Bucket	Text	Yes	The unique name of your AWS S3 bucket.
Prefix (folder)	Text	No	Optional subfolder path within your bucket where files should be placed (e.g. uploads or media/nc). Leave blank to store files in the bucket root.
Region	Dropdown	Yes	AWS region hosting your bucket (e.g. US East (N. Virginia), EU (Frankfurt), EU (Ireland), Asia Pacific (Tokyo)).
Storage Class	Dropdown	Yes	Select Standard (recommended for active assets) or Reduced Redundancy.

1. Enable the plugin and save your settings.

2. In NorrCompetition > Options > General, set Storage Handler to your configured AWS S3 handler to begin synchronizing uploads.
